Example outputs
What leaves the building.
Sample deliverables rendered by G& from approved records. Client, project, location, and personnel identifiers have been removed — the engineering content, layout, and governing standards are unchanged.

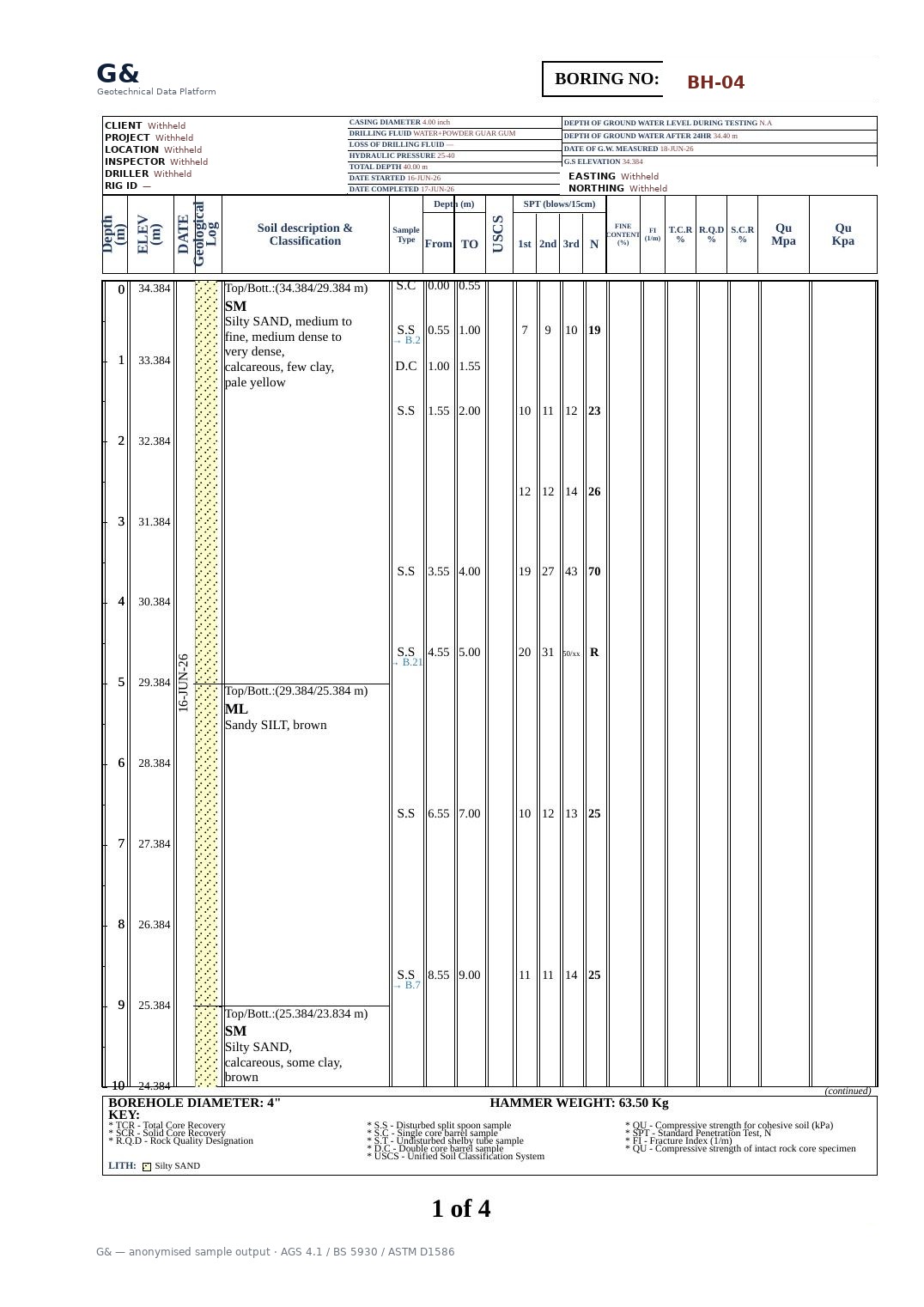

Borehole log — soils sequence
- Governing standards
- BS 5930 · BS EN ISO 14688 / 14689 · ASTM D1586 · AGS 4.1
- Status
- Approved record · anonymised
Plate OUT-01 · select to enlarge
1 · Description
Production log sheet: depth and elevation scales, USCS group symbols, stratum descriptions with top/bottom levels, sample type and interval, SPT increments with computed N, fines content, hammer weight and casing details — regenerated on every data change.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Stratum descriptionsBS EN ISO 14688-1/-2 · BS 5930 §35 | Soil naming, secondary constituents, and colour terms written in fixed dictionary order — no free text. |
| USCS group symbolsASTM D2487 | SM / ML / CL assigned by the classification engine from grading and plasticity, not typed by the logger. |
| SPT increments and NASTM D1586 · BS EN ISO 22476-3 | Blow counts recorded per increment; N is the sum of the second and third increments, refusal shown as 50/xx and flagged R. |
| Clay qu — unconfined compressive strengthASTM D2166 · ASTM D2573 · BS 1377-7 | For cohesive clay, qu is the unconfined compressive strength recorded against the interval where it was measured — by field penetrometer or vane in the hole, or by laboratory UCS once tested. The engine computes cᵤ = qu / 2, so clay strength is carried on the log and not only on the rock runs. |
| Log structure and exportAGS 4.1 (LOCA, GEOL, SAMP, ISPT) | Every plotted element resolves to one AGS group and heading, dictionary-checked before export. |

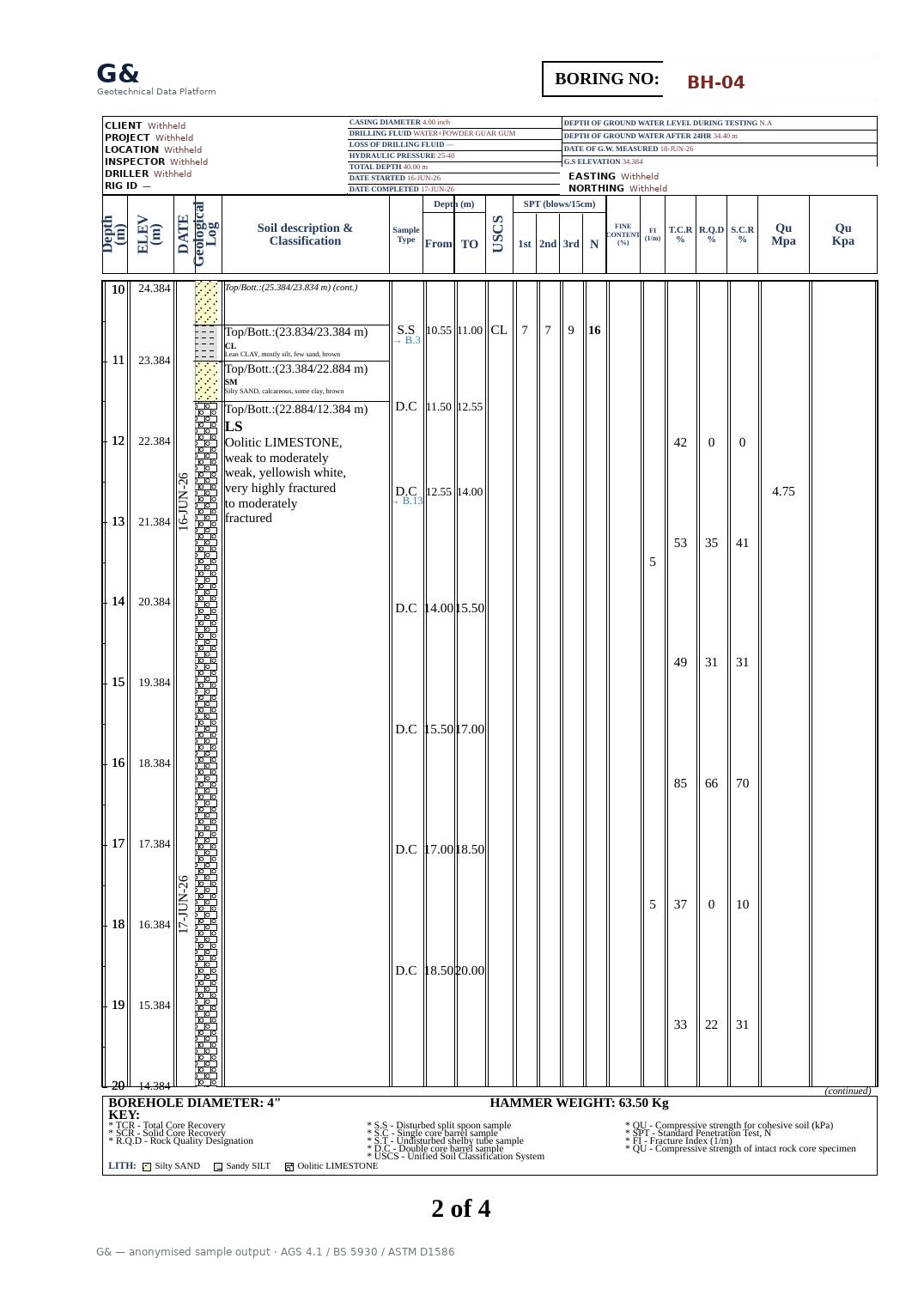

Borehole log — rock coring and recovery
- Governing standards
- BS 5930 · ASTM D6032 · Eurocode 7 · AGS 4.1
- Status
- Approved record · anonymised
Plate OUT-02 · select to enlarge
1 · Description
Continuation sheet through weak rock: core runs, weathering and fracture descriptions, TCR / RQD / SCR percentages, fracture index and point-load strength, plotted against the same depth datum as the soils sequence.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Rock descriptionsBS EN ISO 14689 · BS 5930 §36 | Strength, weathering grade, fracture state and colour recorded as coded terms, then rendered to text. |
| TCR / SCR / RQDBS 5930 §26 · ASTM D6032 | Computed from measured run and piece lengths by the standards engine, never typed on the log. |
| Fracture index and rock qu (UCS)Eurocode 7 · ASTM D7012 · ASTM D5731 | Fractures per metre and intact rock strength — qu measured directly as UCS, or correlated from the point-load index Is₅₀ — kept with the run they were measured on and unit-checked before export. The same qu heading carries clay strength on the soils sheet, so the two are never mixed. |
| Continuation integrityAGS 4.1 (CORE, GEOL, DETL) | Depths, elevations and stratum boundaries carry across pages from one record — no re-keying between sheets. |

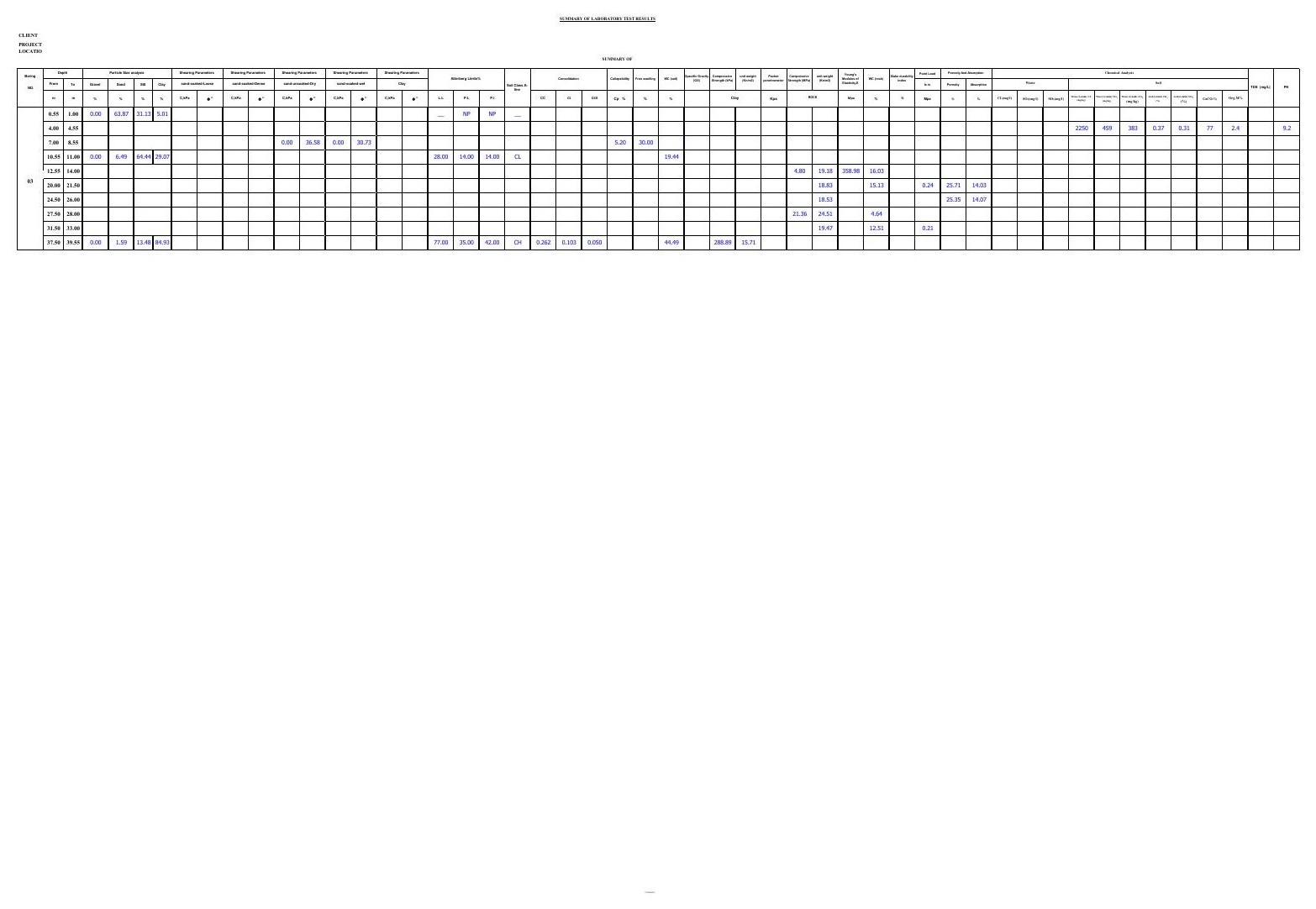

Summary of laboratory test results
- Governing standards
- BS 1377 · ASTM · Eurocode 7 · AGS 4.1
- Status
- Approved record · anonymised
Plate OUT-03 · select to enlarge
1 · Description
Every scheduled test for a location on one governed sheet: gradation, shear parameters, Atterberg limits, consolidation, collapsibility, rock strength, and chemical analysis.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Shear parameters c′, φ′ASTM D3080 · BS 1377-7 | Derived from the retained stress path per specimen; characteristic value selection stays with the engineer under Eurocode 7 §2.4.5.2. |
| Consolidation Cc, Cs, OCRASTM D2435 · BS 1377-5 | Fitted from the e–log σ′ curve by the engine; the fit itself is stored and re-checkable. |
| Collapse potential CpASTM D4546 | Single-oedometer method, inundation stress recorded with the result so the value is never ambiguous. |
| Units and precisionBS 1377-1 · AGS 4.1 unit dictionary | Units and decimal precision fixed per heading, so no sheet reports a value the AGS file cannot express. |

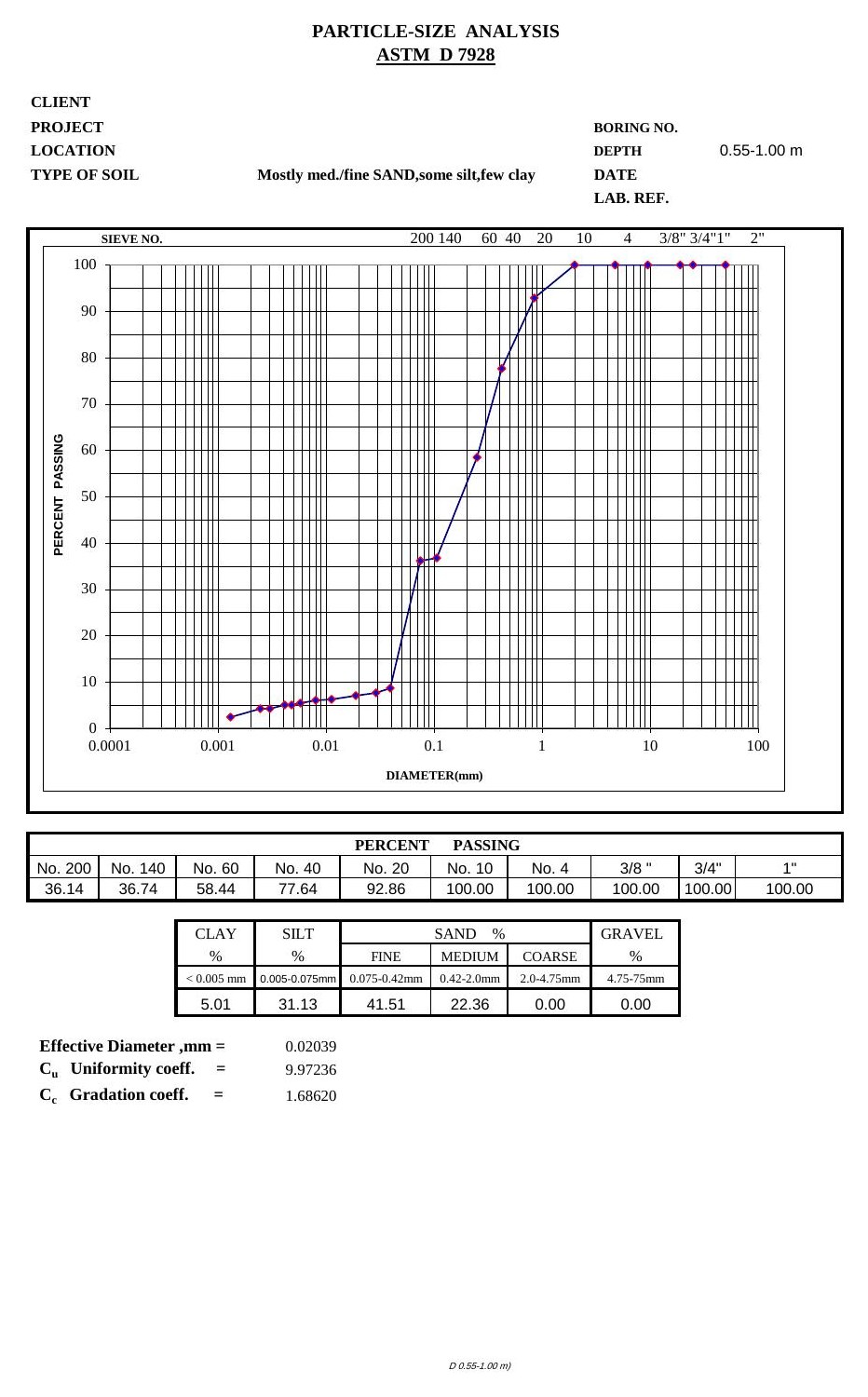

Particle-size analysis
- Governing standards
- ASTM D7928 / D6913 · BS EN ISO 14688-1
- Status
- Approved record · anonymised
Plate OUT-04 · select to enlarge
1 · Description
Sieve and sedimentation data plotted from raw measurements, with fractions, effective diameter, and gradation coefficients derived by the standards engine.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Sieving and sedimentationASTM D6913 / D7928 | Coarse fraction by wet sieving, fines by hydrometer; both series plotted on one governed curve. |
| Fraction boundariesBS EN ISO 14688-1 | Clay / silt / sand / gravel bands drawn at standard limits rather than chart-drawing convenience. |
| Cu and CcASTM D2487 | Uniformity and gradation coefficients interpolated from D10, D30, D60 by the engine. |

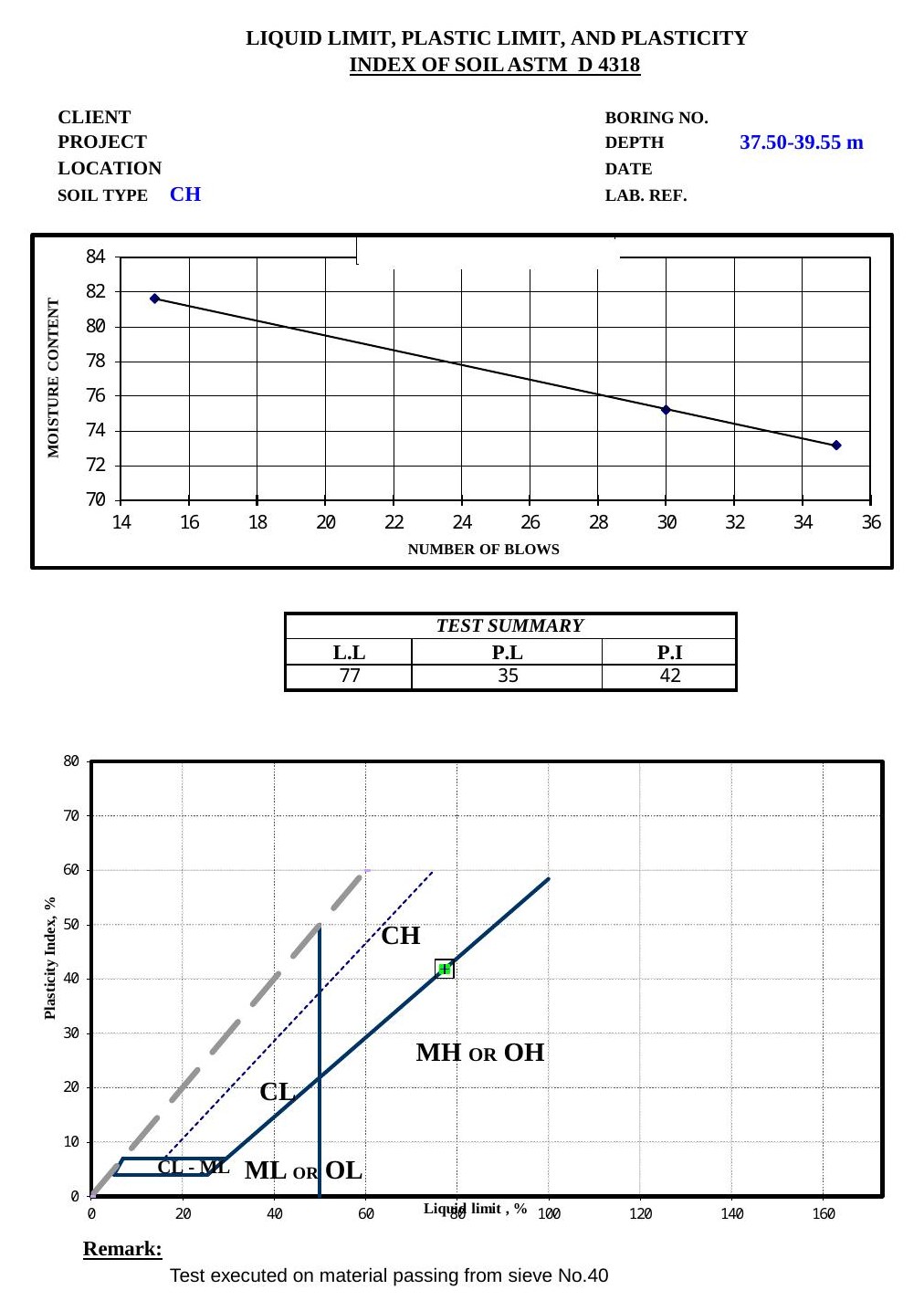

Liquid limit, plastic limit & plasticity index
- Governing standards
- ASTM D4318 · ASTM D2487 · BS 5930
- Status
- Approved record · anonymised
Plate OUT-05 · select to enlarge
1 · Description
Flow curve, limits, and plasticity index computed from the recorded blow counts and moisture contents, with the A-line classification returned automatically.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Liquid limitASTM D4318 (multipoint) | Method recorded with the result; multipoint and cone methods are never averaged or silently interchanged. |
| Plastic limit & PIASTM D4318 §16 | PI = LL − PL computed by the engine from the accepted determinations only. |
| Plasticity chart positionASTM D2487 A-line · BS 5930 chart | CL / CH / ML / MH assignment follows from the plotted point, not from an engineer typing a symbol. |

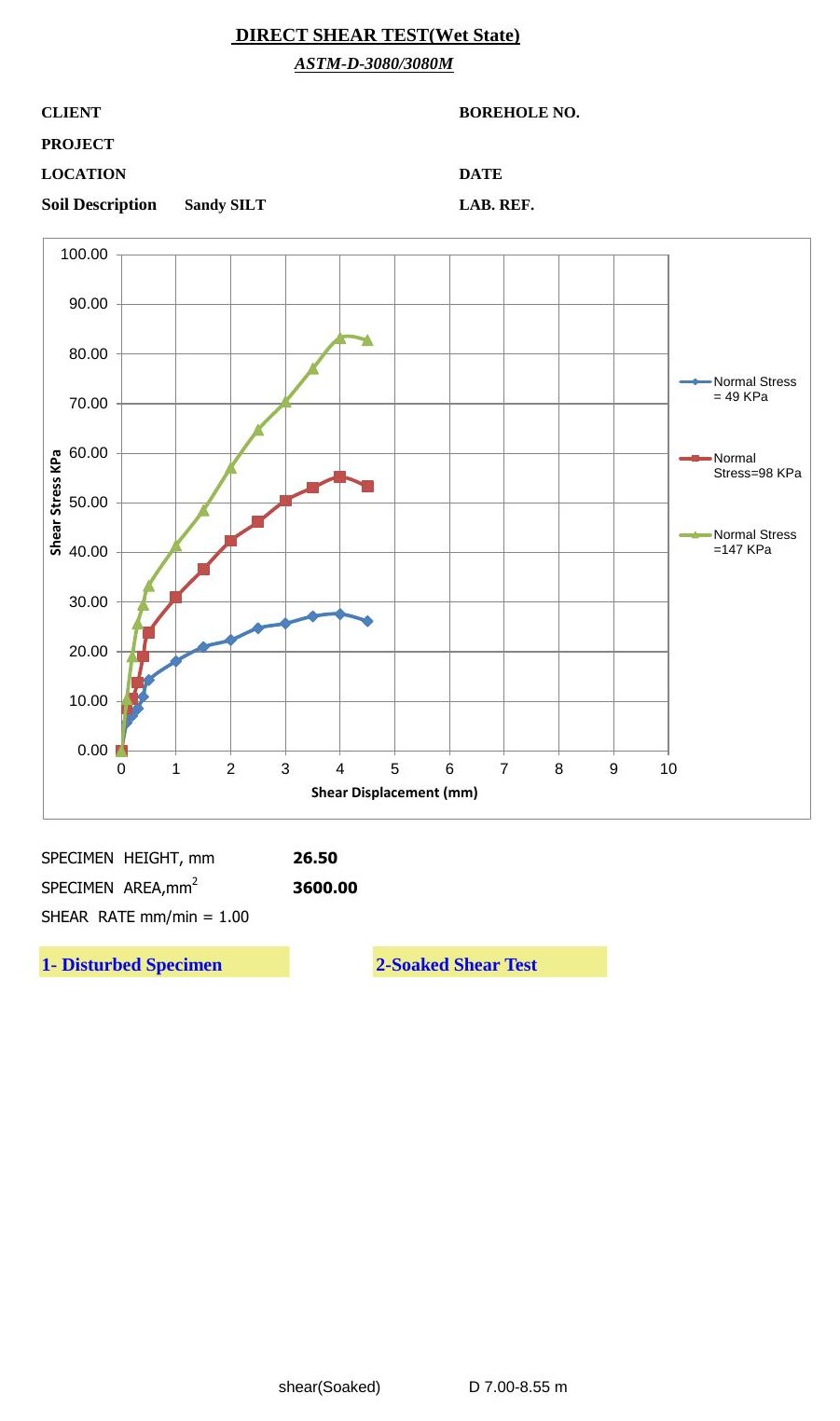

Direct shear test — soaked
- Governing standards
- ASTM D3080 / D3080M · BS 1377-7
- Status
- Approved record · anonymised
Plate OUT-06 · select to enlarge
1 · Description
Shear stress versus displacement for all three normal stresses on one sheet, with specimen geometry, shear rate, and specimen condition carried alongside the curves.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Normal stress stagesASTM D3080 §11 | Each stage retained as its own series so the peak is read from data, not from a redrawn envelope. |
| Specimen conditionASTM D3080 §9 | Disturbed / undisturbed and soaked / unsoaked recorded as governed fields, never as a note. |
| Shear rateASTM D3080 §10 | Rate stored with the test so drainage assumptions can be re-checked years later. |

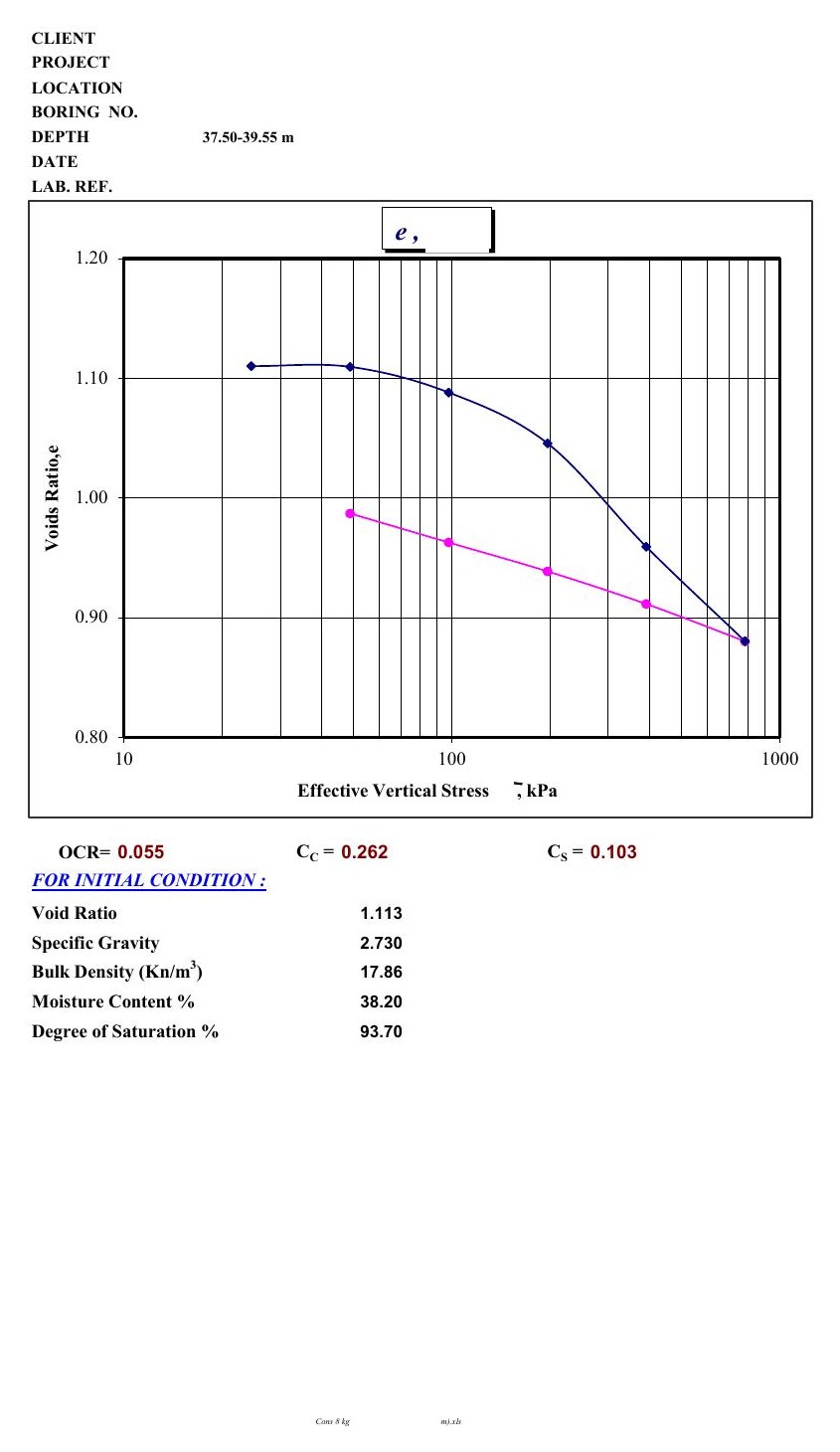

One-dimensional consolidation — e vs log σ′
- Governing standards
- ASTM D2435 · BS 1377-5 · Eurocode 7
- Status
- Approved record · anonymised
Plate OUT-07 · select to enlarge
1 · Description
Loading and unloading branches plotted from the recorded height readings, with Cc, Cs, and OCR fitted by the engine and the initial condition stated on the sheet.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Cc and CsASTM D2435 §11 | Compression and swelling indices fitted from the e–log σ′ branches; the fit is stored, not just the number. |
| Ring constantsASTM D2435 §6 | Diameter, height, and area retained so void ratios can be recomputed from the original weighings. |
| OCREurocode 7 §2.4.3 | Reported as a derived value with its governing standard edition attached. |

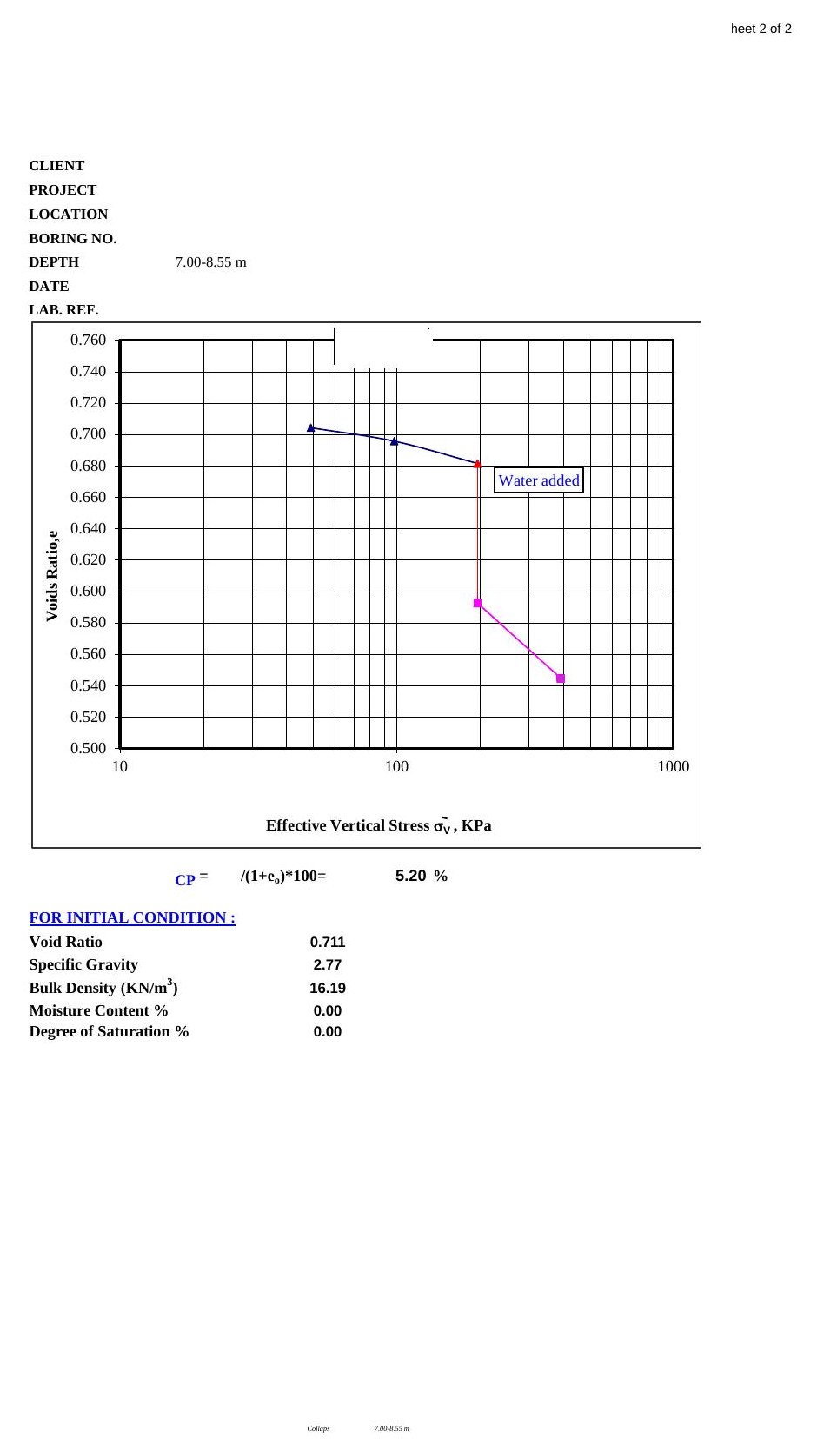

Volume change oedometer — collapse potential
- Governing standards
- ASTM D4546
- Status
- Approved record · anonymised
Plate OUT-08 · select to enlarge
1 · Description
Single-oedometer collapse test with the inundation point marked on the curve and the collapse potential computed from the void ratio change at that stress.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Inundation stressASTM D4546 §8 | The stress at which water is added is plotted and stored, so the result is never reported without its basis. |
| Collapse potential CpASTM D4546 §11 | Cp = Δe / (1 + e₀) × 100 computed by the engine from the accepted readings. |
| Initial conditionASTM D4546 §9 | Void ratio, specific gravity, density, and saturation retained with the specimen record. |

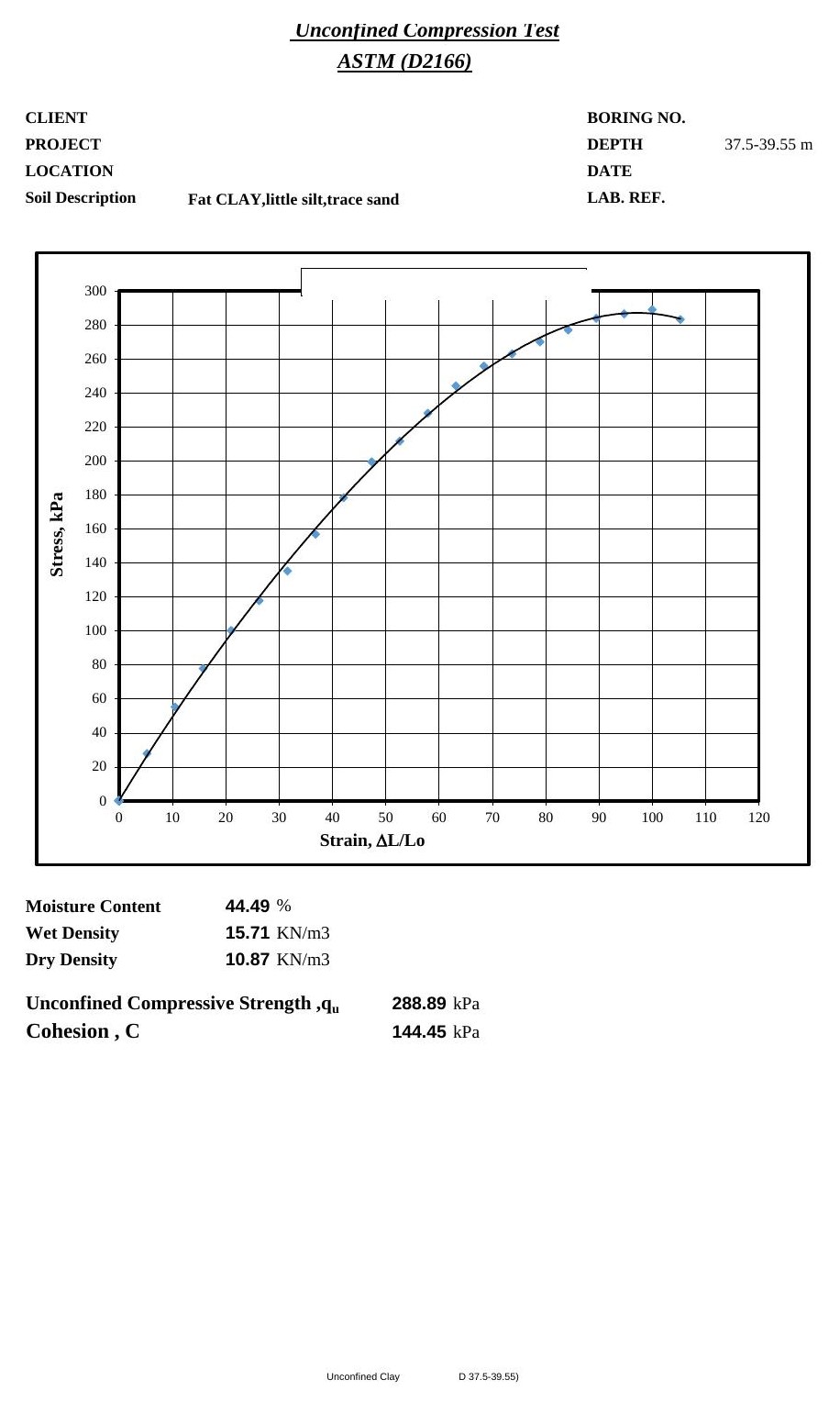

Unconfined compression test — soil
- Governing standards
- ASTM D2166
- Status
- Approved record · anonymised
Plate OUT-09 · select to enlarge
1 · Description
Stress–strain curve for a cohesive specimen with qu and cohesion returned from the peak, and moisture and density states recorded with the test.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| qu and cohesionASTM D2166 §10 | c = qu / 2 computed by the engine from the plotted peak, not entered by hand. |
| Moisture and densityASTM D2216 | Wet and dry densities from oven-dry masses retained per specimen. |

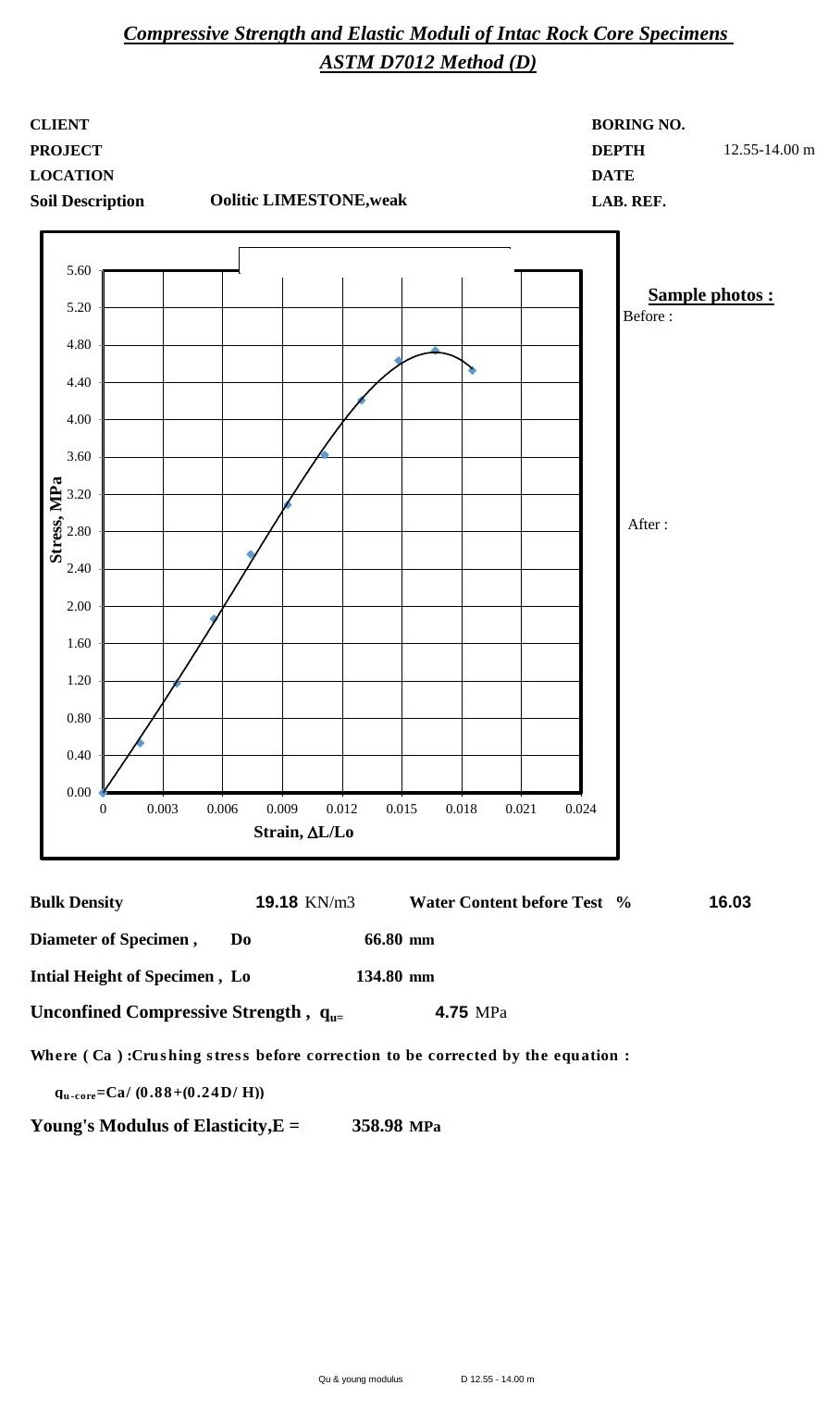

Rock core — compressive strength & elastic modulus
- Governing standards
- ASTM D7012 (Method D)
- Status
- Approved record · anonymised
Plate OUT-10 · select to enlarge
1 · Description
Stress–strain response of an intact core specimen, with corrected UCS and Young's modulus derived from measured specimen geometry.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| UCS correctionASTM D7012 §11 | Crushing stress corrected for the diameter-to-height ratio by the engine, with the equation shown on the sheet. |
| Young's modulusASTM D7012 Method D | Modulus taken from the recorded stress–strain data, with the test method carried alongside the value. |
| Specimen geometryASTM D4543 | Diameter, height, density, and water content stored with the specimen record. |

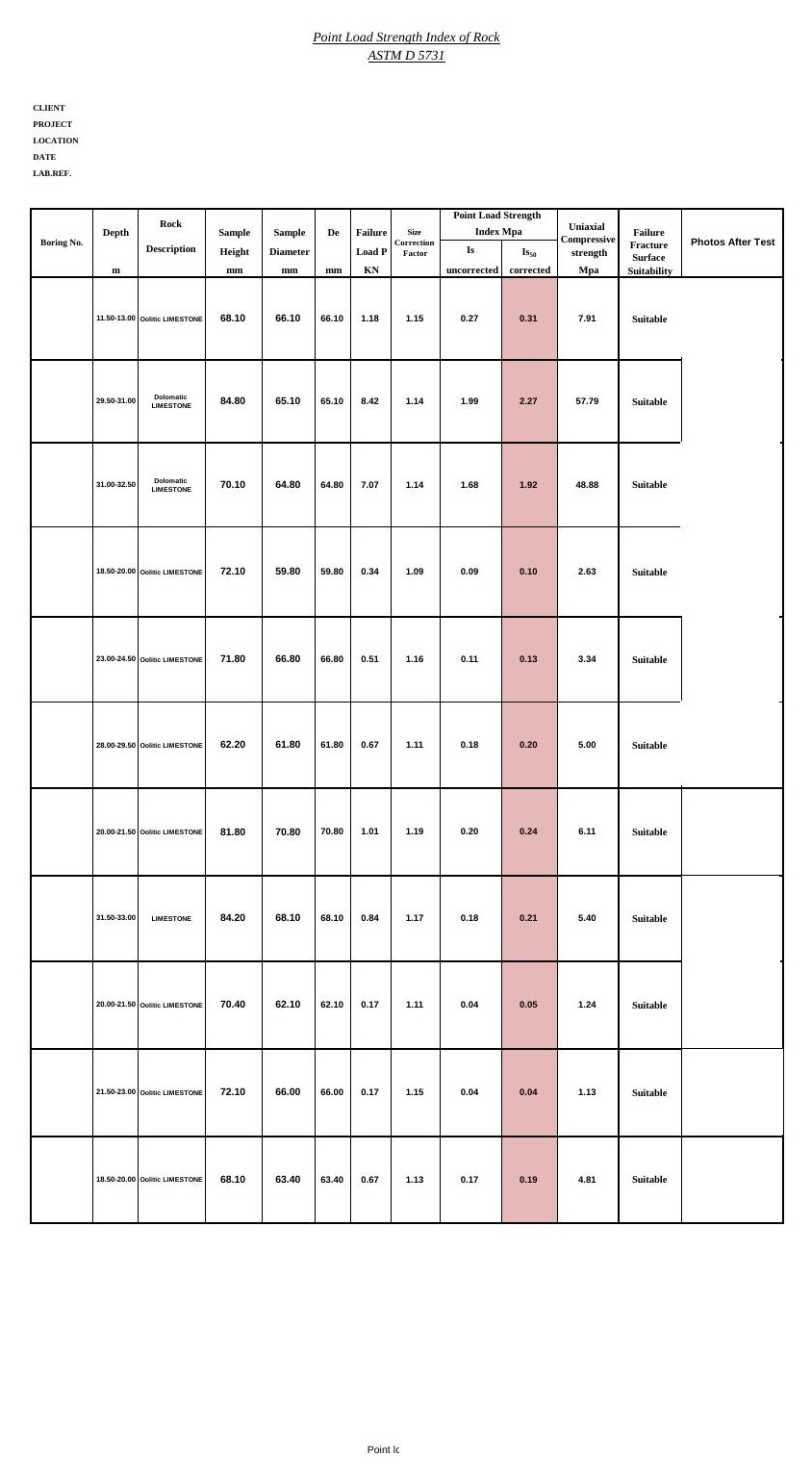

Point load strength index of rock
- Governing standards
- ASTM D5731
- Status
- Approved record · anonymised
Plate OUT-11 · select to enlarge
1 · Description
Point load results across depth intervals with size correction, Is₅₀, and the correlated uniaxial compressive strength returned per specimen.
2 · Standards annotations
| Field · standard | Basis |
|---|---|
| Size correctionASTM D5731 §10 | Correction factor computed from the equivalent core diameter De — never applied by hand. |
| Is₅₀ and correlated UCSASTM D5731 §11 | Corrected index and the correlation used to reach UCS are both stored, so the derivation stays visible. |
| LithologyBS EN ISO 14689-1 | Rock description taken from the governed dictionary per specimen, matched to the borehole record. |
Anonymised sample outputs · no client, project, location, or personnel names shown · references available under NDA
Factual report workflow
Beta capabilityCreate, review, and prepare factual reports with confidence.
G& can create factual report content from approved records and review factual reports for scientific problems, data accuracy, missing evidence, internal inconsistencies, and standards alignment. Findings are returned as comments with a submission-readiness view so the team can resolve issues before sending the report to a client.
The report review workflow is currently in beta and is not yet 100% available in the current release. Final technical acceptance and sign-off remain with the responsible engineer.
Generate
Draft factual tables and report sections from the approved record.
Review
Comment on scientific consistency, accuracy, evidence, and standards.
Prepare
Resolve comments and assess readiness before client submission.
Governing standards
Every annotation above resolves to a versioned standard.
Standards are held as versioned data in G&, not as report settings. Each derived value on a deliverable carries the standard and edition that produced it, so a sheet reprinted years later states the same basis it was signed under.
Transfer format, groups, headings, dictionaries
Site investigation practice, description and logging
Laboratory testing of soils for civil engineering
Identification and classification of soil and rock
D1586, D2166, D2216, D2435, D2487, D3080, D4318, D4373, D4546, D5731, D6913, D7012, D7928
Geotechnical design — characteristic value derivation and reporting
